国标

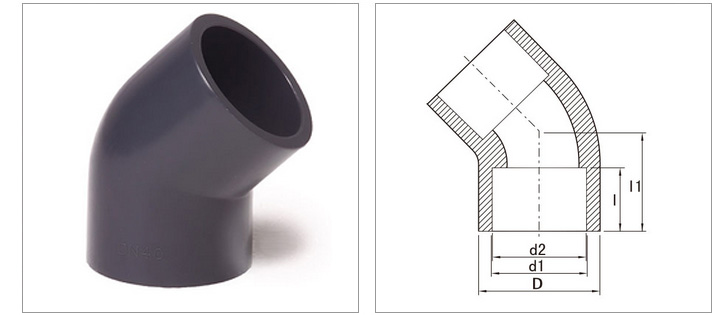

| NominalSize | D | d1 | d2 | l | l1 | |
|---|---|---|---|---|---|---|
| 1/2” | 20mm | 27.10 | 20.11 | 20 | 16.0 | 26.5 |
| 3/4” | 25mm | 32.10 | 25.12 | 25 | 18.5 | 30.0 |
| 1” | 32mm | 40.35 | 32.38 | 32 | 22.0 | 34.5 |
| 1-1/4” | 40mm | 49.00 | 40.38 | 40 | 26.0 | 41.5 |
| 1-1/2” | 50mm | 61.00 | 50.43 | 50 | 31.0 | 51.3 |
| 2” | 63mm | 75.60 | 63.43 | 63 | 37.5 | 57.0 |
| 2-1/2” | 75mm | 89.20 | 75.45 | 75 | 43.5 | 66.0 |
| 3” | 90mm | 105.40 | 90.47 | 90 | 51.0 | 85.8 |
| 4” | 110mm | 128.40 | 110.55 | 110 | 61.0 | 105.5 |
| 5” | 140mm | 162.00 | 140.60 | 140 | 76.0 | 130.5 |
| 6” | 160mm | 185.50 | 160.80 | 160 | 86.0 | 155.0 |
| 8” | 225mm | 259.51 | 226.00 | 225 | 102.0 | 192.0 |
| 10” | 250mm | 314.40 | 251.00 | 250 | 146.0 | 200.0 |
| 12” | 315mm | 356.50 | 316.00 | 315 | 164.0 | 244.0 |
| Nominal | OutsideDia | SocketType | StructuralDiameter | ||
|---|---|---|---|---|---|
| Size | Do | d1 | d2 | H | l |
| 1/2” | 29.0 | 21.54 | 21.23 | 29.37 | 24.20 |
| 3/4” | 35.0 | 26.87 | 26.57 | 34.14 | 27.40 |
| 1” | 44.0 | 33.66 | 33.27 | 37.31 | 30.58 |
| 1-1/4” | 54.0 | 42.42 | 42.04 | 42.86 | 34.75 |
| 1-1/2” | 60.0 | 48.56 | 48.11 | 48.42 | 37.93 |
| 2” | 73.0 | 60.63 | 60.17 | 55.56 | 41.10 |
| 2-1/2” | 88.0 | 73.38 | 72.85 | 63.50 | 47.45 |
| 3” | 105.0 | 89.31 | 88.70 | 73.03 | 50.63 |
| 4” | 132.0 | 114.80 | 114.10 | 86.52 | 60.15 |
| 5” | 162.8 | 141.80 | 141.20 | 102.76 | 70.00 |
| 6” | 191.0 | 168.83 | 168.00 | 120.65 | 79.20 |
| 8” | 246.0 | 219.84 | 216.69 | 160.34 | 104.60 |
| 10” | 306.5 | 273.81 | 272.67 | 223.84 | 130.00 |
| 12” | 364.0 | 324.61 | 323.47 | 265.11 | 155.20 |
