国标

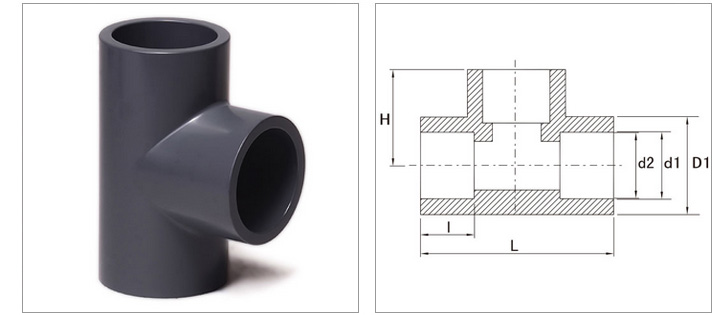

| NominalSize | D1 | d1 | d2 | H | L | l | |
|---|---|---|---|---|---|---|---|
| 1/2” | 20mm | 27.10 | 20.11 | 20.00 | 14.80 | 54.50 | 16.00 |
| 3/4” | 25mm | 32.10 | 25.12 | 25.00 | 17.80 | 66.20 | 18.50 |
| 1” | 32mm | 40.35 | 32.38 | 32.00 | 39.50 | 79.20 | 22.00 |
| 1-1/4” | 40mm | 49.00 | 40.38 | 40.00 | 48.10 | 96.40 | 26.00 |
| 1-1/2” | 50mm | 61.00 | 50.43 | 50.00 | 58.40 | 117.00 | 31.00 |
| 2” | 63mm | 75.60 | 63.43 | 63.00 | 76.20 | 133.20 | 37.50 |
| 2-1/2” | 75mm | 89.20 | 75.45 | 75.00 | 84.60 | 169.20 | 43.50 |
| 3” | 90mm | 105.40 | 90.47 | 90.00 | 96.70 | 193.30 | 51.00 |
| 4” | 110mm | 128.40 | 110.55 | 110.00 | 129.50 | 240.00 | 61.00 |
| 5” | 140mm | 162.00 | 140.60 | 140.00 | 149.60 | 291.00 | 76.00 |
| 6” | 160mm | 185.50 | 160.80 | 160.00 | 174.80 | 350.00 | 86.00 |
| 8” | 225mm | 259.00 | 226.00 | 225.00 | 223.40 | 464.00 | 118.50 |
| 10” | 250mm | 315.00 | 251.00 | 250.00 | 295.30 | 577.00 | 146.00 |
| 12” | 315mm | 357.00 | 316.00 | 315.00 | 339.00 | 675.00 | 164.00 |
| Nominal | OutsideDia | SocketType | StructuralDiameter | ||||
|---|---|---|---|---|---|---|---|
| Size | Do | d1 | d2 | l | d | G | L |
| 1/2” | 29.0 | 21.54 | 21.23 | 24.22 | 16 | 13.0 | 74.61 |
| 3/4” | 35.0 | 26.87 | 26.57 | 27.40 | 22 | 15.0 | 87.31 |
| 1” | 44.0 | 33.66 | 33.27 | 30.58 | 28 | 18.0 | 101.60 |
| 1-1/4” | 54.0 | 42.42 | 42.04 | 34.75 | 35 | 23.0 | 107.95 |
| 1-1/2” | 60.0 | 48.56 | 48.11 | 37.93 | 43 | 26.0 | 120.65 |
| 2” | 73.0 | 60.63 | 60.17 | 41.10 | 54 | 32.0 | 144.46 |
| 2-1/2” | 88.0 | 73.38 | 72.85 | 47.45 | 65 | 39.0 | 174.63 |
| 3” | 105.0 | 89.31 | 88.70 | 50.63 | 80 | 46.5 | 203.20 |
| 4” | 132.0 | 114.80 | 114.10 | 60.15 | 100 | 59.0 | 241.30 |
| 5” | 162.8 | 141.80 | 141.20 | 69.00 | 134 | 74.0 | 286.00 |
| 6” | 191.0 | 168.83 | 168.00 | 79.20 | 150 | 89.0 | 346.08 |
| 8” | 246.0 | 219.84 | 218.96 | 104.60 | 200 | 115.0 | 449.26 |
| 10” | 306.5 | 273.81 | 272.67 | 130.00 | 240 | 145.0 | 581.03 |
| 12” | 364.0 | 324.61 | 323.47 | 155.00 | 290 | 175.0 | 688.97 |
