华亚工业塑胶（太仓）有限公司
地 址：江苏省太仓市沙溪镇陶湾路1号
电 话：0512-53308888
手 机：13915776345 18962626888
Q Q：139157763
传 真：0512-53201788
E-mail：huaya188@126.com
网 址：www.huaya-tc.com
国标

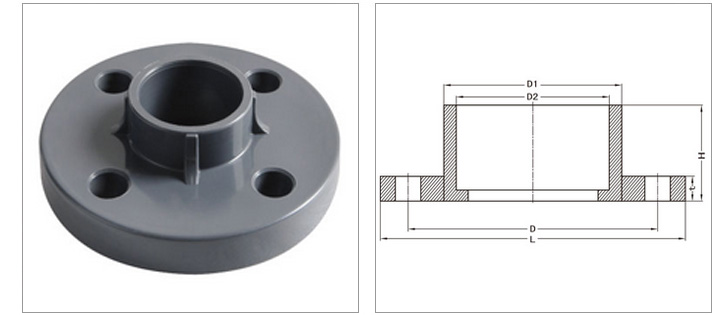

| Size | L | D | D1 | D2 | H | t | HOLES | |
|---|---|---|---|---|---|---|---|---|
| 1/2” | 20mm | 94.99 | 65 | 27.10 | 20.0 | 18.3 | 12.0 | 4 |
| 3/4” | 25mm | 105.00 | 75 | 32.10 | 25.0 | 21.8 | 14.0 | 4 |
| 1” | 32mm | 115.00 | 85 | 40.35 | 32.0 | 25.6 | 13.8 | 4 |
| 1-1/4” | 40mm | 140.00 | 100 | 49.00 | 40.0 | 29.0 | 13.8 | 4 |
| 1-1/2” | 50mm | 150.00 | 110 | 61.00 | 50.0 | 34.7 | 16.0 | 4 |
| 2” | 63mm | 164.97 | 125 | 75.60 | 63.0 | 42.7 | 16.0 | 4 |
| 2-1/2” | 75mm | 185.00 | 145 | 89.20 | 75.0 | 49.5 | 16.0 | 8 |
| 3” | 90mm | 200.00 | 160 | 105.40 | 90.0 | 57.6 | 18.0 | 8 |
| 4” | 110mm | 220.00 | 180 | 128.40 | 110.0 | 69.1 | 18.0 | 8 |
| 5” | 140mm | 250.80 | 210 | 165.00 | 140.6 | 80.5 | 23.0 | 8 |
| 6” | 160mm | 289.30 | 240 | 188.00 | 160.8 | 91.0 | 23.0 | 8 |
| 8” | 225mm | 331.00 | 295 | 246.00 | 226.0 | 128.0 | 23.0 | 8 |
| 10” | 250mm | 416.00 | 350 | 290.00 | 281.0 | 160.0 | 25.0 | 8 |
| 12” | 315mm | 445.00 | 400 | 342.00 | 316.0 | 185.0 | 25.0 | 12 |
| NormalSize | M | L | D | R | BHC | e | HOLESUnit:mm |
|---|---|---|---|---|---|---|---|
| 1/2” | 88.90 | 25.40 | 31.75 | 12.70 | 60.33 | 12.70 | 4 |
| 3/4” | 98.43 | 28.58 | 38.10 | 14.29 | 69.85 | 12.70 | 4 |
| 1” | 107.95 | 31.75 | 46.04 | 15.88 | 79.38 | 12.70 | 4 |
| 1-1/4” | 117.48 | 34.93 | 55.56 | 15.88 | 88.90 | 12.70 | 4 |
| 1-1/2” | 127.00 | 41.28 | 63.50 | 17.46 | 98.43 | 12.70 | 4 |
| 2” | 152.40 | 42.86 | 77.79 | 19.05 | 120.65 | 15.88 | 4 |
| 2-1/2” | 177.80 | 55.56 | 88.90 | 25.40 | 139.70 | 15.88 | 4 |
| 3” | 190.50 | 58.74 | 111.13 | 22.23 | 154.20 | 15.88 | 4 |
| 4” | 230.19 | 63.50 | 138.11 | 30.16 | 190.50 | 15.88 | 8 |
| 5” | 255.60 | 80.96 | 161.93 | 25.40 | 215.90 | 19.05 | 8 |
| 6” | 279.40 | 82.55 | 192.09 | 31.75 | 241.30 | 19.05 | 8 |
| 8” | 341.31 | 114.30 | 247.65 | 36.51 | 298.45 | 19.05 | 8 |
| 10” | 420.69 | 234.95 | 288.93 | 30.16 | 361.95 | 25.40 | 12 |
| 12” | 482.60 | 207.96 | 339.73 | 23.81 | 431.80 | 25.40 | 12 |
