UPVC 异径三通
您现在的位置: 首页 >> 产品展示
UPVC 异径三通

国标

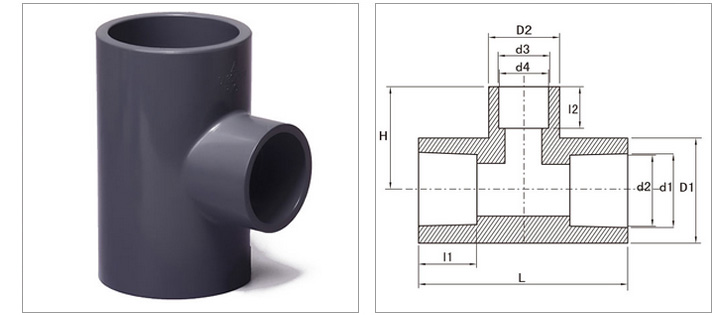

Size D1 D2 d1 d2 d3 d4 L l1 l2 H
25*25*20 31.50 25.36 25.3 25 20.3 20 61.0 18.5 16.0 32.5
32*32*20 40.35 25.36 32.3 32 20.3 20 69.5 22.0 16.0 36.0
32*32*25 40.35 31.50 32.3 32 25.3 25 73.7 22.0 18.5 38.7
40*40*20 49.00 25.36 40.3 40 20.3 20 76.5 26.0 16.0 49.0
40*40*25 49.00 31.50 40.3 40 25.3 25 83.5 26.0 18.5 48.3
40*40*32 49.00 40.35 40.3 40 32.3 32 88.5 26.0 22.0 47.7
50*50*25 61.00 31.50 50.3 50 25.3 25 90.6 31.0 18.5 57.7
50*50*32 61.00 40.35 50.3 50 32.3 32 103.0 31.0 22.0 60.0
50*50*40 61.00 49.00 50.3 50 40.3 40 109.5 31.0 26.0 57.0
63*63*20 75.60 25.36 63.3 63 20.3 20 103.0 37.5 16.0 73.1
63*63*25 75.60 31.50 63.3 63 25.3 25 107.0 37.5 18.5 74.2
63*63*32 75.60 40.35 63.3 63 32.3 32 110.3 37.5 22.0 71.5
63*63*40 75.60 49.00 63.3 63 40.3 40 123.0 37.5 26.0 69.1
75*75*32 89.20 40.35 75.4 75 32.3 32 123.5 43.5 22.5 82.9
75*75*40 89.20 49.00 75.4 75 40.3 40 132.0 43.5 26.0 86.0
75*75*50 89.20 61.00 75.4 75 50.3 50 139.0 43.5 31.0 87.1
75*75*63 89.20 75.60 75.4 75 63.3 63 156.0 43.5 37.5 85.7
90*90*32 105.40 40.35 90.5 90 32.3 32 139.0 51.0 22.0 71.0
90*90*50 105.40 61.00 90.5 90 50.3 50 156.0 51.0 31.0 81.0
90*90*63 105.40 75.60 90.5 90 63.3 63 170.0 51.0 37.5 84.0
90*90*75 105.40 89.20 90.5 90 75.4 75 182.0 51.0 43.5 90.0
110*110*32 128.40 40.35 110.6 110 32.3 32 157.6 61.0 22.0 84.0
110*110*50 128.40 61.00 110.6 110 50.3 50 176.0 61.0 31.0 95.0
110*110*63 128.40 75.60 110.6 110 63.3 63 189.0 61.0 37.5 101.0
110*110*90 128.40 105.40 110.6 110 90.5 90 218.0 61.0 51.0 110.5

美标
Size M M1 M2 H H1 H2 G G1 L
3/4"*3/4"*1/2" 38.10 38.10 33.34 34.13 34.13 38.10 16.67 19.05 84.14
1"*1"*1/2" 42.86 42.86 33.34 43.66 43.66 44.45 15.08 21.43 87.31
1"*1"*3/4" 44.45 44.45 34.93 46.83 46.83 48.42 18.26 22.23 93.66
1-1/4"*1"*3/4" 53.98 53.98 34.93 48.42 48.41 52.39 18.26 26.99 96.84
1-1/4"*1-1/4*1" 53.98 53.98 44.45 53.98 53.98 52.40 21.43 27.00 107.95
1-1/2*1-1/4"*1" 58.74 58.74 42.86 56.36 56.36 54.77 23.02 29.37 112.71
1-1/2"*1-1/2"*3/4" 58.75 58.74 36.93 52.39 52.40 51.59 17.46 29.36 104.78
1-1/2"*1-1/2"*1" 60.33 60.33 44.45 57.15 57.15 58.74 22.23 30.16 114.30
1-1/2"*1-1/2"*1-1/4" 60.33 60.33 53.98 65.09 65.10 59.53 30.16 30.18 130.18
2"*2"*1/2" 76.20 76.20 33.34 54.77 54.76 56.36 15.88 38.10 109.54
2"*2"*3/4" 76.20 76.20 38.10 57.15 57.15 34.13 18.26 38.10 114.30
2"*2"*1" 73.03 73.03 44.45 59.53 59.54 65.09 21.43 36.51 120.65
2"*2"*1-1/2" 73.03 73.03 60.33 68.26 68.26 71.44 30.16 36.53 136.53
3"*3"*2" 106.36 106.36 73.03 84.14 84.14 84.93 36.51 53.18 168.28
4"*4"*2" 131.78 131.78 73.03 93.66 93.66 100.01 35.72 65.88 187.33
4"*4"*3" 133.35 133.35 106.36 110.33 110.33 107.16 53.18 65.89 220.66
6"*6"*2" 190.50 190.50 69.85 203.20 203.20 184.15 101.60 133.35 406.40
6"*6"*2" 182.56 182.56 69.85 184.15 184.15 171.45 82.55 120.65 368.30
6"*6"*3" 192.09 192.09 104.78 129.38 129.38 142.88 53.18 96.04 257.18
6"*6"*3" 182.56 182.56 101.60 209.55 209.55 203.20 107.95 133.35 419.10
6*6"*4" 192.09 192.09 133.35 142.88 142.88 153.19 65.53 96.04 285.75
6"*6"*4" 193.68 193.68 136.53 144.46 144.46 152.40 68.26 96.04 288.93
8"*8"*2" 247.65 247.65 69.85 228.60 228.60 203.20 101.60 152.40 457.20
8"*8"*2" 238.13 238.13 69.85 209.55 209.55 203.20 82.55 452.40 419.10
8"*8"*3" 247.65 247.65 104.78 254.00 254.00 222.25 127.00 158.75 508.00
8"*8"*3" 238.13 238.13 101.60 16.33 234.95 228.60 107.95 158.75 469.90
8"*8"*4" 247.65 247.65 133.35 266.70 266.70 254.00 139.70 165.10 533.40
8"*8"*4" 238.13 238.13 127.00 247.65 247.65 260.35 120.55 171.45 495.30
8"*8"*6" 246.06 246.06 192.09 198.44 198.44 200.82 96.84 123.03 396.88
8"*8"*6" 246.06 246.06 190.50 197.64 197.64 201.61 95.25 122.24 395.29
