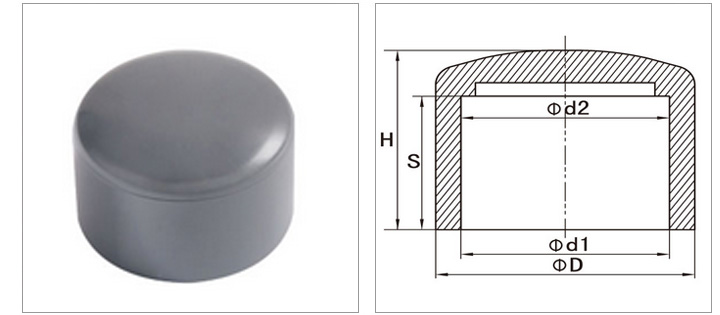

| Size | 1/2” | 3/4” | 1” | 1+1/4” | 1+1/2” | 2” | 2+1/2” | 3” | 4” | 6” | 8” | 10” | 12” |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | 20.30 | 25.30 | 32.30 | 40.30 | 50.30 | 63.30 | 75.35 | 90.50 | 110.60 | 160.70 | 225.80 | 250.80 | 315.80 |
| d2 | 20.00 | 25.00 | 32.00 | 40.00 | 50.00 | 63.00 | 75.00 | 90.00 | 110.00 | 160.00 | 225.30 | 250.40 | 315.40 |
| D | 28.30 | 33.20 | 42.00 | 50.00 | 62.00 | 74.08 | 88.37 | 104.73 | 128.00 | 192.00 | 246.00 | 282.00 | 375.00 |
| S | 18.00 | 21.00 | 26.00 | 31.00 | 39.00 | 14.16 | 47.57 | 55.21 | 70.00 | 79.20 | 104.00 | - | - |
| H | 22.50 | 23.20 | 32.70 | 40.00 | 45.00 | 50.45 | 57.97 | 69.19 | 80.00 | 110.32 | 142.00 | 131.00 | 164.00 |
| Nominal | Outside Dia | Socket Type | Structural Diameter | ||
|---|---|---|---|---|---|
| Size | Do | d1 | d2 | l | L |
| 1/2” | 30.16 | 21.54 | 21.23 | 24.22 | 31.75 |
| 3/4” | 34.93 | 26.87 | 26.57 | 27.40 | 34.93 |
| 1” | 42.86 | 33.66 | 33.27 | 30.58 | 41.28 |
| 1-1/4” | 57.15 | 42.42 | 42.04 | 34.75 | 47.63 |
| 1-1/2” | 58.74 | 48.56 | 48.11 | 37.93 | 52.39 |
| 2” | 77.79 | 60.63 | 60.17 | 41.10 | 61.91 |
| 2-1/2” | 90.49 | 73.38 | 72.85 | 47.45 | 68.26 |
| 3” | 111.13 | 89.31 | 88.70 | 50.63 | 77.79 |
| 4” | 138.11 | 114.80 | 114.10 | 60.15 | 88.90 |
| 6” | 193.09 | 168.83 | 168.00 | 79.20 | 125.41 |
| 8” | 247.65 | 219.84 | 218.69 | 104.60 | 161.93 |
| 10” | 312.74 | 273.82 | 272.67 | 135.00 | 168.75 |
| 12” | 358.78 | 324.61 | 323.47 | 160.00 | 184.15 |
