国标

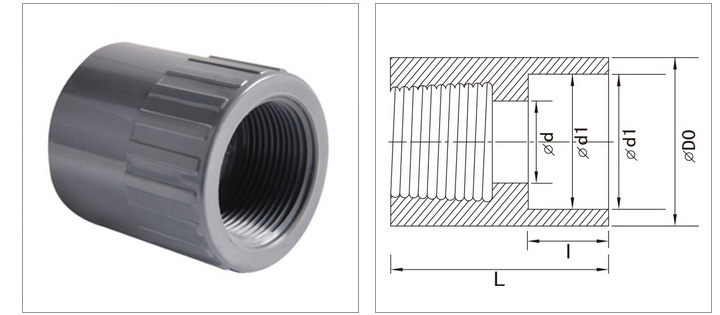

| NominalSize | D | d1 | d2 | L | l | |
|---|---|---|---|---|---|---|
| 1/2” | 20mm | 27.10 | 20.30 | 20 | 39.10 | 16.00 |
| 3/4” | 25mm | 32.10 | 25.30 | 25 | 43.00 | 18.50 |
| 1” | 32mm | 40.35 | 32.30 | 32 | 48.80 | 22.00 |
| 1-1/4” | 40mm | 49.00 | 40.30 | 40 | 53.40 | 26.00 |
| 1-1/2” | 50mm | 61.00 | 50.30 | 50 | 61.30 | 31.00 |
| 2” | 63mm | 75.60 | 63.30 | 63 | 70.70 | 37.50 |
| 2-1/2” | 75mm | 89.20 | 75.40 | 75 | 85.30 | 43.50 |
| 3” | 90mm | 105.40 | 90.50 | 90 | 94.30 | 51.00 |
| 4” | 110mm | 128.40 | 110.60 | 110 | 109.00 | 61.00 |
美标
| Nominal | OutsideDia | SocketType | StructuralDiameter | ||||
|---|---|---|---|---|---|---|---|
| Size | Do | d1 | d2 | l | d | L | NPT |
| 1/2” | 29 | 21.54 | 21.23 | 24.22 | 16 | 52 | 14.0 |
| 3/4” | 35 | 26.87 | 26.57 | 27.40 | 22 | 60 | 14.0 |
| 1” | 44 | 33.66 | 33.27 | 30.58 | 28 | 65 | 11.5 |
| 1-1/4” | 54 | 42.42 | 42.04 | 34.75 | 35 | 78 | 11.5 |
| 1-1/2” | 60 | 48.56 | 48.11 | 37.93 | 43 | 80 | 11.5 |
| 2” | 73 | 60.63 | 60.17 | 41.10 | 54 | 88 | 11.5 |
| 2-1/2” | 88 | 73.38 | 73.17 | 47.45 | 67 | 92 | 11.5 |
| 3” | 105 | 89.31 | 89.17 | 50.63 | 83 | 96 | 11.5 |
| 4” | 132 | 114.80 | 114.10 | 60.15 | 109 | 107 | 11.5 |
