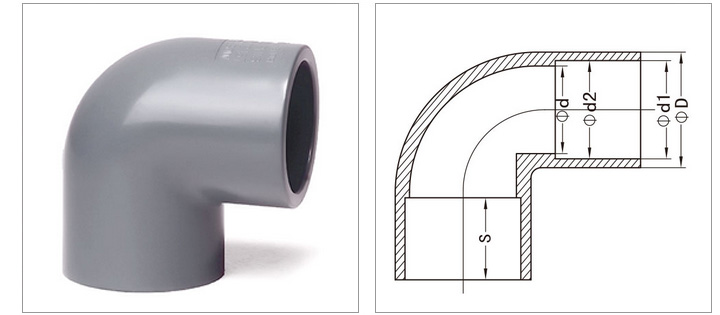

| NominalSize | D | d1 | d2 | d | s | |
|---|---|---|---|---|---|---|
| 1/2” | 20mm | 27.10 | 20.11 | 19.74 | 16.93 | 15.99 |
| 3/4” | 25mm | 32.10 | 25.12 | 24.93 | 21.93 | 19.00 |
| 1” | 32mm | 40.35 | 32.38 | 31.93 | 28.93 | 22.00 |
| 1-1/4” | 40mm | 49.00 | 40.38 | 39.92 | 36.92 | 26.00 |
| 1-1/2” | 50mm | 61.00 | 50.43 | 49.92 | 46.92 | 31.00 |
| 2” | 63mm | 75.60 | 63.43 | 62.92 | 60.00 | 38.00 |
| 2-1/2” | 75mm | 89.20 | 75.45 | 74.92 | 70.92 | 44.00 |
| 3” | 90mm | 105.40 | 90.47 | 89.92 | 85.92 | 51.00 |
| 4” | 110mm | 128.40 | 110.55 | 109.93 | 105.92 | 61.00 |
| 5” | 140mm | 162.00 | 140.60 | 140.00 | 135.00 | 76.00 |
| 6” | 160mm | 185.50 | 160.80 | 160.00 | 155.00 | 86.00 |
| 8” | 225mm | 259.00 | 226.00 | 225.00 | 219.00 | 102.00 |
| 10” | 250mm | 315.00 | 251.00 | 250.00 | 240.00 | 146.00 |
| 12” | 315mm | 357.00 | 316.00 | 315.00 | 290.00 | 164.00 |
| Nominal | OutsideDia | SocketType | StructuralDiameter | |||
|---|---|---|---|---|---|---|
| Size | Do | d1 | d2 | H | d | G |
| 1/2” | 29.0 | 21.54 | 21.23 | 37.31 | 16 | 14.29 |
| 3/4” | 35.0 | 26.87 | 26.57 | 41.28 | 22 | 15.88 |
| 1” | 44.0 | 33.66 | 33.27 | 48.42 | 28 | 19.84 |
| 1-1/4” | 54.0 | 42.42 | 42.04 | 59.94 | 35 | 26.19 |
| 1-1/2” | 60.0 | 48.56 | 48.11 | 63.93 | 43 | 26.99 |
| 2” | 73.0 | 60.63 | 60.17 | 70.64 | 54 | 30.96 |
| 2-1/2” | 88.0 | 73.38 | 72.85 | 85.73 | 65 | 41.28 |
| 3” | 105.0 | 89.31 | 88.70 | 95.25 | 80 | 46.83 |
| 4” | 132.0 | 114.80 | 114.10 | 118.79 | 100 | 61.12 |
| 5” | 162.8 | 141.80 | 141.20 | 143.00 | 134 | 74.80 |
| 6” | 191.0 | 168.83 | 168.00 | 174.63 | 150 | 95.25 |
| 8” | 246.0 | 219.84 | 218.96 | 222.25 | 200 | 120.65 |
| 10” | 306.5 | 273.81 | 272.67 | 288.73 | 240 | 147.64 |
| 12” | 364.0 | 324.61 | 323.47 | 339.73 | 290 | 171.45 |
