国标

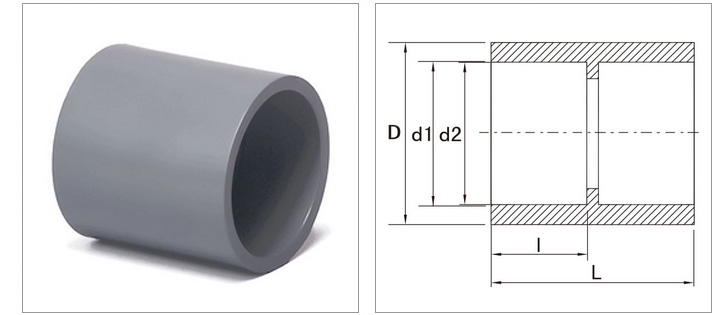

| NominalSize | D | d1 | d2 | L | l | |
|---|---|---|---|---|---|---|
| 1/2” | 20mm | 27.10 | 20.11 | 20 | 33.96 | 16.00 |
| 3/4” | 25mm | 32.10 | 25.12 | 25 | 40.80 | 18.50 |
| 1” | 32mm | 40.35 | 32.38 | 32 | 47.60 | 22.00 |
| 1-1/4” | 40mm | 49.00 | 40.38 | 40 | 55.60 | 26.00 |
| 1-1/2” | 50mm | 61.00 | 50.43 | 50 | 65.40 | 31.00 |
| 2” | 63mm | 75.60 | 63.43 | 63 | 79.40 | 37.50 |
| 2-1/2” | 75mm | 89.20 | 75.45 | 75 | 91.40 | 43.50 |
| 3” | 90mm | 105.40 | 90.47 | 90 | 118.30 | 51.00 |
| 4” | 110mm | 128.40 | 110.55 | 110 | 131.00 | 61.00 |
| 5” | 140mm | 162.00 | 140.60 | 140 | 160.80 | 76.00 |
| 6” | 160mm | 185.50 | 160.80 | 160 | 180.50 | 86.00 |
| 8” | 225mm | 259.51 | 226.00 | 225 | 226.70 | 102.00 |
| 10” | 250mm | 314.40 | 251.00 | 250 | 302.20 | 146.00 |
| 12” | 315mm | 356.50 | 316.00 | 315 | 340.00 | 164.00 |
美标
| Nominal | OutsideDia | SocketType | StructuralDiameter | |||
|---|---|---|---|---|---|---|
| Size | Do | d1 | d2 | l | d | L |
| 1/2” | 29.0 | 21.54 | 21.23 | 24.22 | 16 | 52 |
| 3/4” | 35.0 | 26.87 | 26.57 | 27.40 | 22 | 60 |
| 1” | 44.0 | 33.66 | 33.27 | 30.58 | 28 | 65 |
| 1-1/4” | 54.0 | 42.42 | 42.04 | 34.75 | 35 | 75 |
| 1-1/2” | 60.0 | 48.56 | 48.11 | 37.93 | 43 | 80 |
| 2” | 73.0 | 60.63 | 60.17 | 41.10 | 54 | 88 |
| 2-1/2” | 88.0 | 73.38 | 72.85 | 47.45 | 65 | 100 |
| 3” | 105.0 | 89.31 | 88.70 | 50.63 | 80 | 108 |
| 4” | 132.0 | 114.80 | 114.10 | 60.15 | 100 | 126 |
| 5” | 162.8 | 141.80 | 141.20 | 69.00 | 134 | 145 |
| 6” | 191.0 | 168.83 | 168.00 | 79.20 | 144 | 169 |
| 8” | 246.0 | 219.84 | 218.96 | 104.60 | 200 | 220 |
| 10” | 304.0 | 273.81 | 272.67 | 130.00 | 240 | 270 |
| 12” | 360.0 | 324.61 | 323.47 | 155.00 | 290 | 320 |
