CPVC 大小头
您现在的位置: 首页 >> 产品展示
CPVC 大小头

国标

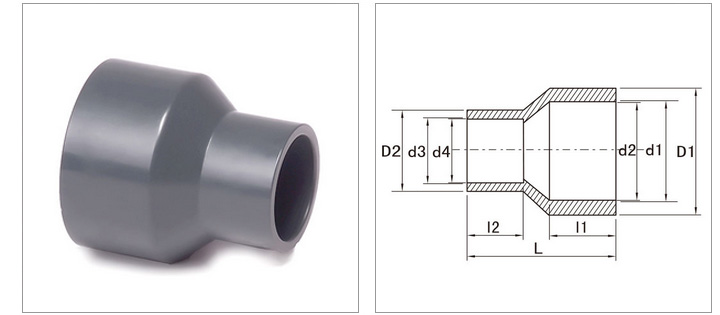

Size D1 D2 d1 d2 d3 d4 L l1 l2
25*20 31.50 25.36 25.3 25 20.3 20 41.1 18.5 16.0
32*20 40.35 25.36 32.3 32 20.3 20 46.3 22.0 16.0
32*25 40.35 31.50 32.3 32 25.3 25 49.3 22.0 18.5
40*32 49.00 40.35 40.3 40 32.3 32 58.3 26.0 22.0
50*25 61.00 31.50 50.3 50 25.3 25 62.8 31.0 18.5
50*32 61.00 40.35 50.3 50 32.3 32 65.8 31.0 22.0
63*25 75.60 31.50 63.3 63 32.3 32 73.5 37.5 18.5
63*32 75.60 40.35 63.3 63 32.3 32 76.4 37.5 22.0
63*50 75.60 61.00 63.3 63 50.3 50 85.0 37.5 31.0
75*32 89.20 40.35 75.4 75 32.3 32 85.0 43.5 22.0
75*50 89.20 61.00 75.4 75 50.3 50 93.0 43.5 31.0
75*63 89.20 75.60 75.5 75 63.3 63 100.0 43.5 37.5
90*50 105.40 61.00 90.5 90 50.3 50 105.0 51.0 31.0
90*63 105.40 75.60 90.5 90 63.3 63 112.0 51.0 37.5
110*63 128.40 75.60 110.6 110 63.3 63 125.0 61.0 37.5
110*90 128.40 105.40 110.6 110 90.5 90 139.0 61.0 51.0
美标

NominalSize M M1 N L
3/4”x1/2” 34.93 30.16 4.76 53.98
1”x1/2” 42.86 30.16 4.76 55.56
1”x3/4” 42.86 34.93 6.35 59.53
1-1/4”x1/2” 53.98 30.16 3.18 57.15
1-1/4”x3/4” 53.98 34.93 3.18 60.33
1-1/4”x1” 53.98 44.45 7.94 68.26
1-1/2”x1/2” 60.33 30.16 3.18 60.33
1-1/2”x3/4” 60.33 34.93 3.18 63.50
1-1/2”x1” 60.33 44.45 3.18 66.68
1-1/2”x1-1/4” 60.33 53.98 4.76 71.44
2”x1/2” 73.03 30.16 3.18 63.50
2”x3/4” 73.03 34.93 3.18 66.68
2”x1” 73.03 44.45 4.76 73.03
2”x1-1/4” 73.03 53.98 4.76 74.61
2”x1-1/2” 73.03 60.33 6.35 82.55
3”x2”, 104.78 73.03 4.76 90.49
4”x2” 133.35 73.03 4.76 100.01
4”x2-1/2” 133.35 104.78 12.70 117.48
4”x3” 133.35 104.78 4.76 111.13
6”x2” 192.09 133.35 111.13 180.98
6”x3” 192.09 133.35 101.60 180.98
6”x4” 192.09 133.35 46.04 169.86
8”x4” 231.78 127.00 165.10 204.79
8”x6” 247.65 192.09 177.80 204.79
10”x4” 288.93 127.00 222.25 444.50
10”x6” 288.93 182.56 190.50 444.50
10”x8” 298.45 247.65 88.90 368.30
10”x8” 288.93 238.13 88.90 368.30
12”x4” 341.31 127.00 338.67 590.55
12”x6” 341.31 182.56 306.92 590.55
12”x8” 341.31 238.13 205.32 536.58
12”x10” 352.43 304.80 101.60 431.80
12”x10” 341.31 292.10 101.60 431.80
