CPVC 卜申
您现在的位置: 首页 >> 产品展示

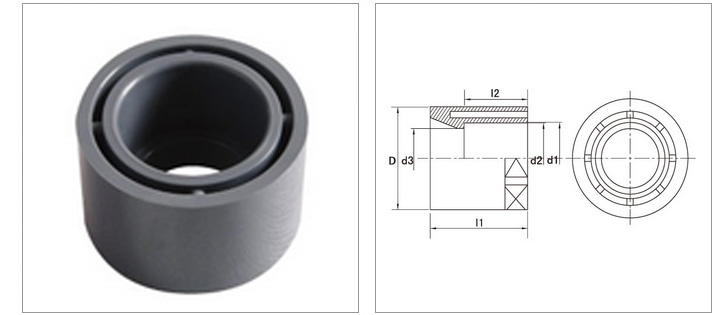

CPVC 卜申

国标

NominalSize D d1 d2 d3 l1 l2
25*20 25 20.3 20 15.7 18.5 16.0
32*20 32 20.3 20 17.5 22.0 16.0
32*25 32 25.3 25 19.5 22.0 18.5
40*20 40 20.3 20 17.5 26.0 16.0
40*32 40 32.3 32 21.5 26.0 22.0
50*20 50 20.3 20 17.5 31.0 16.0
50*25 50 25.3 25 21.4 31.0 18.5
50*32 50 32.3 32 28.4 31.0 22.0
50*40 50 40.3 40 30.5 31.0 26.0
63*20 63 20.3 20 17.5 37.5 16.0
63*25 63 25.3 25 21.6 37.5 18.5
63*32 63 32.3 32 28.5 37.5 22.0
63*40 63 40.3 40 30.5 37.5 26.0
63*50 63 50.3 50 38.0 37.5 31.0
75*50 75 50.3 50 44.5 43.5 31.0
75*63 75 63.3 63 49.6 43.5 37.5
90*40 90 40.3 40 34.4 51.0 26.0
90*50 90 50.3 50 44.5 51.0 31.0
90*63 90 63.3 63 57.0 51.0 37.5
90*75 90 75.4 75 59.0 51.0 43.5
110*50 110 50.3 50 44.0 61.0 31.0
110*63 110 63.3 63 57.0 61.0 37.5
110*75 110 75.0 75 69.4 61.0 43.5
110*90 110 90.5 90 79.0 61.0 51.0
140*110 140 110.6 110 100.0 86.0 57.0
160*140 160 140.8 140 129.5 96.0 76.0
225*160 225 160.8 160 149.0 128.0 86.0
315*250 315 281.0 280 270.0 184.0 164.0
250*225 250 226.0 225 215.0 164.0 146.0

美标
Nominal OutsideDia SocketType StructuralDiameter
Size D1 d1 d2 l B d L L1
1/2”*1/4” 21.34 14.02 13.61 19.00 30 10 26.99 23.00
1/2”*3/8” 21.34 17.04 17.45 22.00 30 12 25.58 23.00
3/4”*1/2” 26.67 21.54 21.23 24.00 30 13 31.75 27.00
1”*3/8” 33.40 17.45 17.04 22.00 36 12 34.93 30.00
1”*1/2” 33.40 21.54 21.23 24.00 36 16 36.51 30.00
1”*3/4” 33.40 26.87 26.57 28.00 36 18 36.51 30.00
1-1/4”*1/2” 42.16 21.54 21.23 24.22 46 16 39.69 35.00
1-1/4”*3/4” 42.16 26.87 26.57 27.40 46 22 39.68 35.00
1-1/4”*1” 42.16 33.66 33.57 30.58 46 28 39.69 35.00
1-1/2”*1/2” 48.26 21.54 21.23 24.22 55 16 44.45 38.00
1-1/2”*3/4” 48.26 26.87 26.57 27.40 55 22 44.45 38.00
1-1/2”*1” 48.26 33.66 33.27 30.58 55 28 44.45 38.00
1-1/2”*1-1/4” 48.26 42.42 42.04 34.75 55 35 44.45 38.00
2”*1/2” 60.33 21.54 21.23 24.22 70 16 44.45 42.00
2”*3/4” 60.33 26.87 26.57 27.40 70 22 47.62 42.00
2”*1” 60.33 33.66 33.27 30.58 70 28 47.62 42.00
2”*1-1/4” 60.33 42.42 42.04 34.75 70 35 47.62 42.00
2”*1-1/2” 60.33 48.56 48.11 37.93 70 43 47.62 42.00
2-1/2”*1-1/2” 73.03 48.56 48.11 37.93 80 43 68.74 48.45
2-1/2”*2” 73.03 60.63 60.17 41.10 80 54 60.33 48.45
3*1-1/2” 88.90 48.56 48.11 37.93 80 54 58.74 45.45
3”*2” 88.90 60.63 60.17 41.10 99 54 58.74 51.00
3”*2-1/2” 88.90 73.38 72.85 47.45 99 65 58.74 51.00
4”*2” 114.30 60.63 60.17 41.10 125 54 66.68 60.50
4”*2-1/2” 114.30 73.38 72.85 47.75 125 65 68.26 60.50
4”*3” 114.30 89.31 88.70 50.63 125 80 71.44 60.50
5”*4” 141.81 114.76 114.07 60.15 155 100 84.00 69.60
6”*4” 168.28 114.76 114.07 60.15 180 100 103.19 76.50
6”*5” 168.28 141.81 141.04 69.66 180 125 90.00 76.50
8”*6” 219.10 168.83 168.00 79.00 235 150 125.41 104.60
10”*6” 173.05 168.83 168.00 79.00 290 150 163.51 130.00
10”*8” 273.05 219.84 218.69 105.00 290 200 163.51 130.00
12”*8” 219.10 219.84 218.69 105.00 345 200 176.21 155.00
12”*10” 219.10 273.81 272.67 130.00 345 245 176.21 155.00
