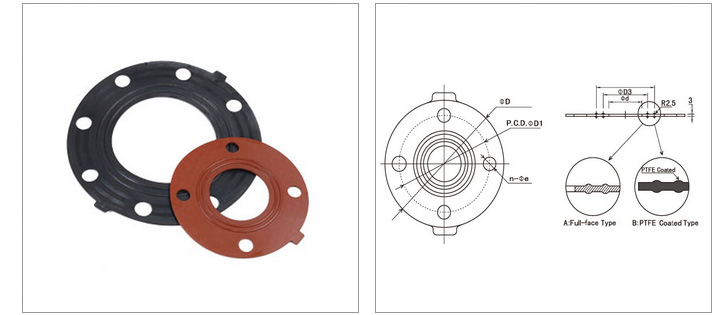

| Size | Standard | Material |
|---|---|---|
| 尺寸 | 规格 | 材质 |
| 1/2”~12“ | ANSI、JIS、DIN | EPDM、FPM、EPDM+PTFE |
| Size | 20mm | 25mm | 32mm | 40mm | 50mm | 63mm | 75mm | 90mm | 110mm | 125mm | 150mm | 200mm | 250mm | 300mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nom. | 1/2” | 3/4” | 1” | 1-1/4” | 1-1/2” | 2” | 2-1/2” | 3” | 4” | 5” | 6” | 8” | 10” | 12” |
| D | 93 | 98 | 123 | 133 | 138 | 153 | 173 | 183 | 208 | 248 | 278 | 328 | 398 | 443 |
| D1 | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 | 210 | 240 | 290 | 356 | 400 |
| D2 | 41 | 47 | 53 | 65 | 69 | 83 | 101 | 112 | 138 | 166 | 190 | 247 | 306 | 352 |
| D3 | 26 | 32 | 38 | 50 | 54 | 68 | 86 | 98 | 120 | 145 | 168 | 216 | 270 | 324 |
| d | 18 | 22 | 30 | 37 | 43 | 54 | 69 | 80 | 102 | 127 | 150 | 198 | 249 | 300 |
| n-Φe | 4-15 | 4-15 | 4-19 | 4-19 | 4-19 | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-25 | 16-25 |
| T | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Size | 20mm | 25mm | 32mm | 40mm | 50mm | 63mm | 75mm | 90mm | 110mm | 125mm | 150mm | 200mm | 250mm | 300mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nom. | 1/2” | 3/4” | 1” | 1-1/4” | 1-1/2” | 2” | 2-1/2” | 3” | 4” | 5” | 6” | 8” | 10” | 12” |
| D | 86.36 | 98 | 106.68 | 124.40 | 124.40 | 149.86 | 175.20 | 187.96 | 226.06 | 251.46 | 276.86 | 340.36 | 403.86 | 480.06 |
| D1 | 60.45 | 75 | 79.50 | 98.55 | 98.55 | 420.65 | 139.70 | 152.40 | 190.50 | 215.90 | 241.30 | 298.45 | 361.95 | 431.80 |
| D2 | 40.64 | 47 | 53.34 | 68.55 | 68.55 | 83.82 | 101.60 | 111.76 | 137.16 | 165.10 | 190.50 | 246.38 | 307.34 | 356.06 |
| D3 | 25.40 | 32 | 38.10 | 50.80 | 53.34 | 68.58 | 86.36 | 99.06 | 119.38 | 144.78 | 167.64 | 215.90 | 269.24 | 325.20 |
| d | 17.78 | 22 | 30.48 | 43.18 | 43.18 | 53.34 | 86.58 | 81.28 | 101.60 | 127.00 | 148.86 | 198.12 | 248.92 | 299.72 |
| n-Φe | 4-16 | 4-15 | 4-16 | 4-16 | 4-16 | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22, | 8-22 | 12-25 | 12-25 |
| T | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Size | 20mm | 25mm | 32mm | 40mm | 50mm | 63mm | 75mm | 90mm | 110mm | 125mm | 150mm | 200mm | 250mm | 300mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nom. | 1/2” | 3/4” | 1” | 1-1/4” | 1-1/2” | 2” | 2-1/2” | 3” | 4” | 5” | 6” | 8” | 10” | 12” |
| D | 93 | 103 | 113 | 133 | 148 | 163 | 183 | 198 | 218 | 248 | 283 | 328 | 393 | 443 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 |
| D2 | 41 | 47 | 53 | 65 | 69 | 83 | 101 | 112 | 138 | 166 | 190 | 247 | 306 | 352 |
| D3 | 26 | 32 | 38 | 50 | 54 | 68 | 86 | 98 | 120 | 145 | 168 | 216 | 270 | 324 |
| d | 18 | 22 | 30 | 37 | 43 | 54 | 69 | 80 | 102 | 127 | 150 | 198 | 249 | 300 |
| n-Φe | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-23 | 12-23 | 12-23 | 12-23 |
| T | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
