| Size | Standard | Material | O-ring、Seat | Endtype |
|---|---|---|---|---|
| 尺寸 | 规格 | 材质 | “O”环、垫片 | 接口 |
| 1/2~4” | ANSI、JIS、DIN、BS | PVC | EPDM/FPM、PTFE | Socket,Threaded,Flanged |
| 1/2~4” | ANSI、JIS、DIN、BS | CPVC | EPDM/FPM、PTFE | Socket,Threaded,Flanged |
| 1/2~4” | ANSI、JIS、DIN、BS | PVDF | EPDM/FPM、PTFE | Socket,Threaded,Flanged |
| 1/2~4” | ANSI、JIS、DIN、BS | PP | EPDM/FPM、PTFE | Socket,Threaded,Flanged |
| 1/2~4” | ANSI、JIS、DIN、BS | ABS | EPDM/FPM、PTFE | Socket,Threaded,Flanged |

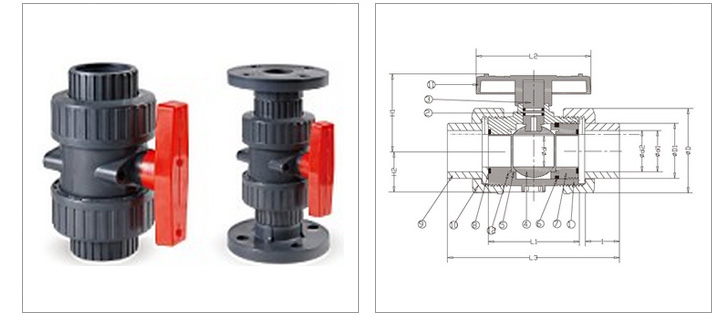

| Size | 15mm | 20mm | 25mm | 32mm | 40mm | 50mm | 65mm | 80mm | 100mm | |
|---|---|---|---|---|---|---|---|---|---|---|
| Nom | 1/2” | 3/4” | 1” | 1-1/4” | 1-1/2” | 2” | 2-1/2” | 3” | 4” | |
| thd./in | NPT | 14.00 | 14.00 | 11.50 | 11.50 | 11.50 | 11.50 | 8.00 | 8.00 | 8.00 |
| PT | 14.00 | 14.00 | 11.00 | 11.00 | 11.00 | 11.00 | 11.00 | 11.00 | 11.00 | |
| JIS | l | 22.80 | 25.40 | 29.00 | 34.20 | 35.00 | 38.10 | 46.00 | 51.00 | 61.00 |
| d1 | 22.30 | 26.30 | 32.33 | 38.43 | 48.46 | 60.56 | 76.60 | 89.60 | 114.70 | |
| d2 | 21.70 | 25.70 | 31.67 | 37.57 | 47.54 | 59.44 | 75.87 | 88.83 | 113.98 | |
| ANSI | d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.88 | 89.31 | 114.76 |
| l | 23.50 | 25.40 | 29.50 | 34.00 | 34.00 | 38.10 | 44.45 | 51.30 | 61.00 | |
| d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.70 | 114.07 | |
| DIN | l | 16.00 | 19.00 | 22.00 | 26.00 | 31.00 | 38.00 | 46.00 | 51.00 | 61.00 |
| d1 | 20.30 | 25.30 | 32.30 | 40.30 | 50.30 | 63.30 | 75.30 | 90.30 | 110.40 | |
| d2 | 20.00 | 25.00 | 32.00 | 40.00 | 50.00 | 63.00 | 75.00 | 90.00 | 110.00 | |
| d | 13.00 | 18.00 | 23.00 | 30.00 | 38.00 | 48.00 | 61.00 | 69.00 | 99.00 | |
| d1 | 13.00 | 16.00 | 16.20 | 19.50 | 23.50 | 25.20 | 27.00 | 34.50 | 43.50 | |
| D | 46.00 | 55.00 | 66.00 | 82.00 | 98.00 | 120.00 | 139.00 | 162.00 | 226.00 | |
| D1 | 95.00 | 105.00 | 115.00 | 140.00 | 151.00 | 164.50 | 183.00 | 200.00 | 219.50 | |
| D2 | 65.00 | 75.00 | 85.00 | 100.00 | 110.00 | 125.00 | 145.00 | 160.00 | 180.00 | |
| D3 | 30.50 | 36.50 | 43.50 | 54.00 | 64.50 | 78.50 | 92.00 | 109.00 | 145.50 | |
| L | 164.00 | 182.00 | 210.00 | 233.00 | 247.00 | 291.00 | 371.00 | 414.00 | 462.00 | |
| L1 | 60.50 | 73.00 | 79.00 | 87.00 | 93.00 | 114.00 | 136.00 | 157.00 | 177.00 | |
| L2 | 78.00 | 92.00 | 98.00 | 110.00 | 120.00 | 147.00 | 181.00 | 226.00 | 281.00 | |
| L3 | 112.00 | 130.00 | 144.00 | 168.00 | 173.00 | 204.00 | 275.00 | 300.50 | 330.00 | |
| H1 | 48.00 | 57.00 | 66.00 | 76.00 | 88.00 | 108.00 | 126.00 | 130.00 | 178.00 | |
| H2 | 19.00 | 25.00 | 33.00 | 38.00 | 41.00 | 52.00 | 71.00 | 81.00 | 114.00 | |
| F | 30.00 | 33.00 | 39.00 | 47.00 | 52.00 | 70.00 | 84.00 | 84.00 | 121.00 | |
| M | M6 | M6 | M6 | M8 | M8 | M8 | M8 | M8 | M8 | |
| S | 8.00 | 8.00 | 12.00 | 12.00 | 12.00 | 14.00 | 24.00 | 23.00 | 30.00 | |
| T | 12.00 | 14.00 | 14.00 | 14.00 | 14.00 | 18.00 | 19.00 | 21.00 | 21.00 | |
| n-Φe | 4-Φ14 | 4-Φ14 | 4-Φ14 | 4-Φ18 | 4-Φ18 | 4-Φ18 | 4-Φ18 | 8-Φ18 | 8-Φ18 | |
| No | Part | Material | Q’ty | |
|---|---|---|---|---|
| 2 | Stemo-ring | 中心柱O环 | EPDM,FPM | 2 |
| 3 | Stem | 中心柱 | UPVC,CPVC,PP,PVDF,ABS | 1 |
| 4 | Ball | 球 | UPVC,CPVC,PP,PVDF,ABS | 1 |
| 5 | SeatSeal | 球垫片 | PTFE | 2 |
| 6 | CarrierO-ring | 内特普O环 | EPDM,FPM | 1 |
| 7 | SealCarrer | 内特普 | UPVC,CPVC,PP,PVDF,ABS | 1 |
| 8 | UnionO-ring | 本体O环 | EPDM,FPM | 2 |
| 9 | EndConnector | 外特普 | UPVC,CPVC,PP,PVDF,ABS | 2 |
| 10 | UnionNut | 螺帽 | UPVC,CPVC,PP,PVDF,ABS | 2 |
| 11 | Handle | 把手 | ABS,PP | 1 |
| 12 | SeatSeal-ring | 球垫片O环 | EPDM,FPM | 2-4 |
| 13 | Flange | 法兰 | UPVC,CPVC,PP,PVDF,ABS | 2 |
| 1 | Body | 本体 | UPVC,CPVC,PP,PVDF,ABS | 1 |
