工作压力：150 PSI
上方平台设计可加装气动或电动驱动器
蝶片开启角度可由刻度盘上清楚显示，并可由齿轮片固定
膜片（阀瓣）与橡胶垫座配合方式为“插入式”并且有二条橡胶O环双重密封
密封性能有效，可靠且使用寿命长

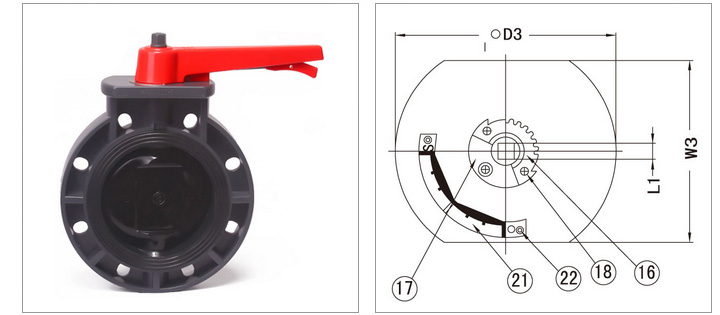

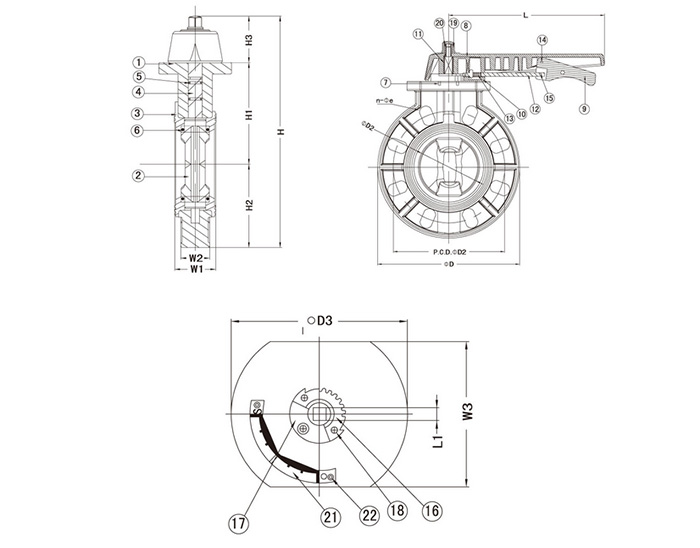

| Size | 50mm | 65mm | 80mm | 100mm | 125mm | 150mm | 200mm | |
|---|---|---|---|---|---|---|---|---|
| Nom | 2” | 2-1/2” | 3” | 4” | 5” | 6” | 8” | |
| D | 165.0 | 185.0 | 200.0 | 229.0 | 258.0 | 288.0 | 344.0 | |
| D1 | ANSI | 121.0 | 140.0 | 152.0 | 191.0 | 216.0 | 241.0 | 298.0 |
| JIS | 120.0 | 140.0 | 150.0 | 175.0 | 210.0 | 240.0 | 290.0 | |
| DIN | 125.0 | 145.0 | 160.0 | 180.0 | 210.0 | 240.0 | 295.0 | |
| D2 | 54.0 | 68.0 | 78.0 | 100.0 | 126.0 | 149.0 | 200.0 | |
| D3 | 105.0 | 120.0 | 123.0 | 134.0 | 164.0 | 170.0 | 201.0 | |
| L | 199.0 | 199.0 | 199.0 | 254.0 | 297.0 | 297.0 | 297.0 | |
| L1 | 10.0 | 10.0 | 10.0 | 12.20 | 16.0 | 18.0 | 18.0 | |
| H | 246.0 | 267.0 | 277.0 | 317.0 | 381.0 | 401.0 | 451.0 | |
| H1 | 103.0 | 113.0 | 115.0 | 135.5 | 165.0 | 177.0 | 210.0 | |
| W1 | 44.0 | 48.0 | 48.0 | 60.0 | 70.0 | 72.0 | 81.5 | |
| W2 | 36.0 | 37.0 | 37.0 | 47.0 | 57.0 | 65.0 | 78.5 | |
| W3 | 94.0 | 94.0 | 94.0 | 100.0 | 100.0 | 100.0 | 122.0 | |
| n-Φe | ANSI | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 |
| JIS | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | |
| DIN | 4-18 | 4-19 | 8-18 | 8-18 | 8-18 | 8-22 | 8-23 | |
| H2 | 82.5 | 92.5 | 100.0 | 144.5 | 128.5 | 142.5 | 171.5 | |
| H3 | 63.0 | 62.0 | 62.0 | 66.0 | 80.0 | 83.0 | 83.0 | |
| Size | Standard | BodyM’tl | SestM’tl | O-RingM’tl | DiscM’tl | EndType |
|---|---|---|---|---|---|---|
| 尺寸 | 尺寸 | 本体材质 | 垫座材质 | O环材质 | 膜片材质 | 接口方式 |
| 2”-8 | ANSI、JIS、DIN | PVC-U | EPDM、FPM | EPDM、FPM | PP | Flanged |
| 2”-8 | ANSI、JIS、DIN | CPVC | EPDM、FPM | EPDM、FPM | CPVC | Flanged |
| 2”-8 | ANSI、JIS、DIN | PVDF | FPM | FPM | PVDF | Flanged |
| No | Part | Meterial | Q’ty |
|---|---|---|---|
| 1 | Body本体 | PVC,PVDF,CPVC | 1 |
| 2 | Disc膜片 | PP,PVDF,CPVC | 1 |
| 3 | SeatSeal垫座 | EPDM,FPM | 1 |
| 4 | Stem中心柱 | SUS410/304/316 | 1 |
| 5 | O-RingO环 | EPDM,FPM | 2 |
| 6 | O-RingO环 | EPDM,FPM | 2 |
| 7 | InsertNut嵌入螺母 | BRASS | 3 |
| 8 | LargeHandle旋转把手 | ABS | 1 |
| 9 | SmallHandle制动把手 | ABS | 1 |
| 10 | SpringLock固定弹簧片 | ABS | 1 |
| 11 | HandleInsert把手镶件 | STANINLESSSTEEL | 1 |
| 12 | HandleLever把手拉杆 | SUS304 | 1 |
| 13 | Spring弹簧 | SUS304 | 1 |
| 14 | SpringPin固定销 | SUS304 | 1 |
| 15 | SpringPin固定销 | SUS304 | 1 |
| 16 | LockingPlate固定齿轮片 | SUS304 | 1 |
| 17 | GearSeat旋转座 | PP+GF | 1 |
| 18 | Bolt螺丝 | SUS304 | 3 |
| 19 | Nut螺帽 | PVC,PVDF | 1 |
| 20 | NinsertNut镶入螺丝 | BRASS | 1 |
| 21 | Level指示牌 | SUS304 | 1 |
| 22 | Bolt固定螺丝 | STAINLESSSTEEL | 2 |
