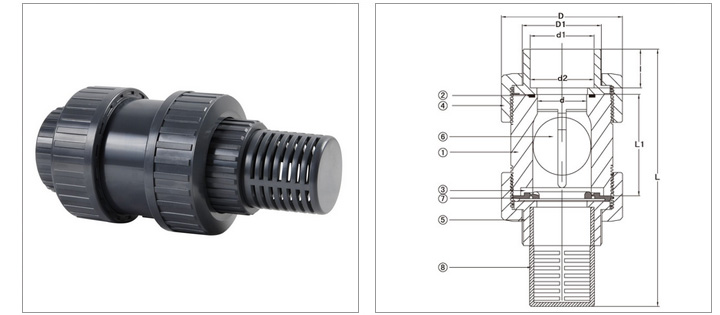

| No | Part | Material | Q’ty |
|---|---|---|---|
| 1 | Body本体 | UPVC,CPVC,PP,PVDF,ABS | 1 |
| 2 | UnionO-ring本体O环 | EPDM,FPM | 1 |
| 3 | Washer垫片 | UPVC,CPVC,PP,PVDF,ABS | 1 |
| 4 | UnionNut螺帽 | UPVC,CPVC,PP,PVDF,ABS | 2 |
| 5 | EndConnector外特普 | UPVC,CPVC,PP,PVDF,ABS | 2 |
| 6 | Ball球 | UPVC,CPVC,PP,PVDF,ABS | 1 |
| 7 | Gasket橡胶垫片 | EPDM,FPM | 1 |
| 8 | Filter过滤网 | UPVC,CPVC,PP,PVDF,ABS | 1 |
| Size | 15mm | 20mm | 25mm | 32mm | 40mm | 50mm | |
|---|---|---|---|---|---|---|---|
| Nom. | 1/2” | 3/4” | 1” | 1-1/4” | 1-1/2” | 2” | |
| thd./in | NPT | 14.00 | 14.00 | 11.50 | 11.50 | 11.50 | 11.50 |
| PT | 14.00 | 14.00 | 11.00 | 11.00 | 11.00 | 11.00 | |
| JIS | l | 22.22 | 25.40 | 28.60 | 31.80 | 34.90 | 38.10 |
| d1 | 22.30 | 26.30 | 32.33 | 38.43 | 48.46 | 60.65 | |
| d2 | 21.70 | 25.70 | 31.67 | 37.57 | 47.54 | 59.44 | |
| ANSI | l | 22.22 | 25.40 | 28.58 | 31.57 | 34.93 | 38.10 |
| d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | |
| d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | |
| DIN | l | 16.00 | 19.00 | 22.00 | 34.00 | 34.00 | 38.00 |
| d1 | 20.30 | 25.30 | 32.30 | 40.30 | 50.30 | 63.30 | |
| d2 | 20.00 | 25.00 | 32.00 | 40.00 | 50.00 | 63.00 |
| L1 | 40.50 | 55.50 | 60.00 | 90.30 | 90.30 | 100.40 | |
| L | 131.00 | 148.50 | 165.00 | 214.00 | 232.00 | 253.00 | |
| D1 | 30.50 | 36.50 | 43.50 | 64.50 | 64.50 | 78.50 | |
| D | 46.00 | 55.00 | 66.00 | 98.00 | 98.00 | 120.00 | |
| d | 13.00 | 18.00 | 23.00 | 39.00 | 39.00 | 48.00 | |
| Size | Standard | Material | O-ring、Seat | Endtype |
|---|---|---|---|---|
| 尺寸 | 规格 | 材质 | “O”环、垫片 | 接口 |
| 1/2”~2” | ANSI、JIS、DIN、BS | PVC | EPDM/FPM、PTFE | Socket,Threaded,Flanged |
| 1/2”~2” | ANSI、JIS、DIN、BS | CPVC | EPDM/FPM、PTFE | Socket,Threaded,Flanged |
| 1/2”~2” | ANSI、JIS、DIN、BS | PVDF | EPDM/FPM、PTFE | Socket,Threaded,Flanged |
| 1/2”~2” | ANSI、JIS、DIN、BS | PP | EPDM/FPM、PTFE | Socket,Threaded,Flanged |
| 1/2”~2” | ANSI、JIS、DIN、BS | ABS | EPDM/FPM、PTFE | Socket,Threaded,Flanged |
