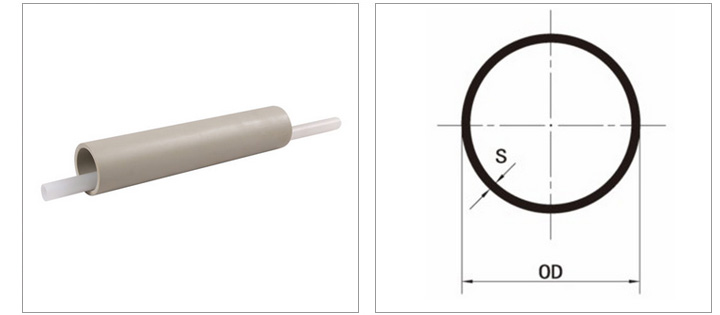

| OD |
Ventilation | PN2,5 ISO S-20 SDR41 |
PN3,2 ISO S-16 SDR33 |
PN4 ISO S-12.5 SDR26 |
PN6 ISO S-8.3 SDR17.6 |
PN10 ISO S-5 SDR11 |
PN16 ISO S-3.125 SDR7.25 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | Weight | S | Weight | S | Weight | S | Weight | S | Weight | S | Weight | S | Weight | S | Weight | |
| [mm] | [mm] | [Kg/m]4) | [mm] | [Kg/m]4) | [mm] | [Kg/m]4) | [mm] | [Kg/m]4) | [mm] | [Kg/m]4) | [mm] | [Kg/m]4) | [mm] | [Kg/m]4) | [mm] | [Kg/m]4) |
| 16 | - | - | - | - | - | - | - | - | - | - | - | - | 2.0 | 0.08 | 2.3 | 0.10 |
| 20 | - | - | - | - | - | - | - | - | - | - | 1.8 | 0.10 | 2.5 | 0.14 | 2.8 | 0.16 |
| 25 | - | - | - | - | - | - | - | - | - | - | 1.8 | 0.13 | 2.7 | 0.19 | 3.5 | 0.23 |
| 32 | - | - | - | - | - | - | - | - | - | - | 1.9 | 0.18 | 3.0 | 0.27 | 4.5 | 0.38 |
| 40 | - | - | - | - | - | - | - | - | 1.8 | 0.22 | 2.3 | 0.27 | 3.7 | 0.41 | 5.6 | 0.58 |
| 50 | - | - | - | - | - | - | 1.8 | 0.27 | 2.0 | 0.30 | 2.9 | 0.42 | 4.6 | 0.64 | 6.9 | 0.90 |
| 63 | - | - | - | - | 1.8 | 0.35 | 2.0 | 0.39 | 2.5 | 0.47 | 3.6 | 0.66 | 5.8 | 1.00 | 8.7 | 1.40 |
| 75 | - | - | - | - | 1.9 | 0.44 | 2.4 | 0.55 | 2.9 | 0.65 | 4.3 | 0.94 | 6.9 | 1.40 | 10.4 | 2.00 |
| 90 | - | - | - | - | 2.2 | 0.61 | 2.8 | 0.76 | 3.5 | 0.94 | 5.1 | 1.30 | 8.2 | 2.00 | 12.5 | 2.90 |
| 110 | - | - | - | - | 2.7 | 0.90 | 3.5 | 1.20 | 4.3 | 1.40 | 6.3 | 2.00 | 10.0 | 3.00 | 15.2 | 4.30 |
| 125 | - | - | - | - | 3.1 | 1.20 | 3.9 | 1.50 | 4.9 | 1.80 | 7.1 | 2.60 | 11.4 | 3.90 | 17.2 | 5.60 |
| 140 | - | - | - | - | 3.5 | 1.50 | 4.4 | 1.80 | 5.4 | 2.20 | 8.0 | 3.20 | 12.8 | 4.90 | 19.3 | 7.00 |
| 160 | - | - | - | - | 3.9 | 1.90 | 5.0 | 2.40 | 6.2 | 2.90 | 9.1 | 4.20 | 14.6 | 6.40 | 22.0 | 9.00 |
| 180 | - | - | - | - | 4.4 | 2.40 | 5.6 | 3.00 | 7.0 | 3.70 | 10.2 | 5.20 | 16.4 | 8.10 | 14.8 | 11.60 |
| 200 | - | - | - | - | 4.9 | 2.90 | 6.2 | 3.70 | 7.7 | 4.50 | 11.4 | 6.50 | 18.2 | 9.90 | 27.6 | 14.30 |
| 225 | - | - | - | - | 5.5 | 3.70 | 7.0 | 4.60 | 8.7 | 5.70 | 12.8 | 8.20 | 20.5 | 12.60 | 31.0 | 18.10 |
| 250 | - | - | - | - | 6.1 | 4.60 | 7.8 | 5.70 | 9.7 | 7.10 | 14.2 | 10.10 | 22.8 | 15.50 | 34.5 | 22.30 |
| 280 | - | - | - | - | 6.9 | 5.70 | 8.7 | 7.20 | 10.8 | 8.80 | 15.9 | 12.60 | 25.5 | 19.50 | 38.6 | 28.00 |
| 315 | - | - | - | - | 7.7 | 7.20 | 9.8 | 9.10 | 12.2 | 11.20 | 17.9 | 16.00 | 28.7 | 24.60 | - | - |
| 355 | - | - | - | - | 8.7 | 9.10 | 11.1 | 11.60 | 13.7 | 14.10 | 20.1 | 20.30 | 32.3 | 31.20 | - | - |
| 400 | 6.0 | 7.2 | 6.0 | 9.7 | 9.8 | 11.60 | 12.4 | 14.60 | 15.4 | 17.90 | 22.7 | 25.70 | 36.4 | 39.70 | - | - |
| 450 | 6.0 | 8.2 | 8.0 | 11.0 | 11.0 | 14.70 | 14.0 | 18.40 | 17.4 | 22.70 | 25.5 | 32.50 | 41.0 | 50.20 | - | - |
| 500 | 8.0 | 11.3 | 8.0 | 15.1 | 12.2 | 18.00 | 15.5 | 22.70 | 19.3 | 28.00 | 28.3 | 40.10 | 45.5 | 62.00 | - | - |
| 560 | 10.0 | 16.6 | - | - | 13.7 | 22.60 | 17.4 | 28.50 | 21.6 | 35.00 | 31.7 | 50.30 | - | - | - | - |
| 630 | 10.0 | 18.8 | - | - | 15.4 | 28.60 | 19.6 | 36.10 | 24.3 | 44.30 | 35.7 | 63.70 | - | - | - | - |
| 710 | 12.0 | 25.3 | - | - | 17.4 | 36.40 | 22.1 | 45.80 | 27.4 | 56.30 | 40.2 | 80.80 | - | - | - | - |
| 800 | 12.0 | 28.6 | - | - | 19.6 | 46.10 | 24.9 | 58.10 | 30.8 | 71.20 | - | - | - | - | - | - |
